7kg臭氧發生器
日期：2020/9/6 / 人氣： / 來源：派尼爾環保

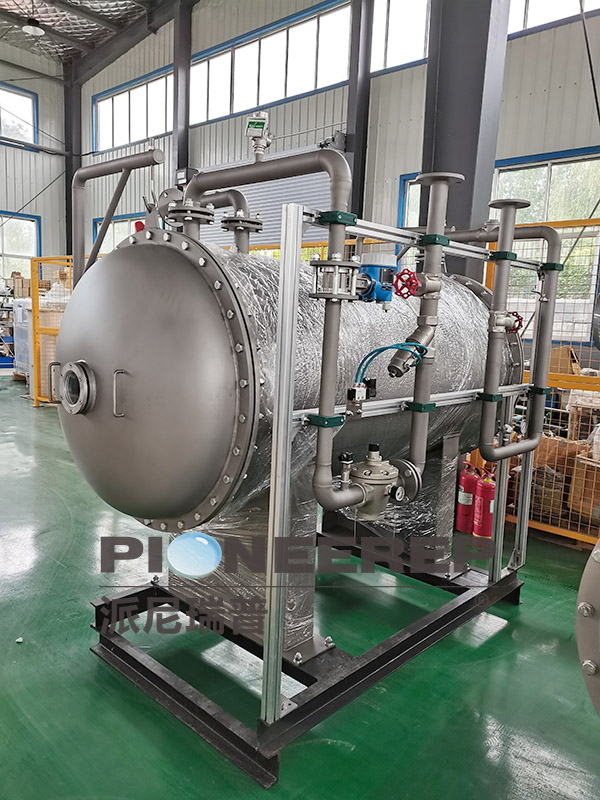

現場實拍
大型空氣源技術參數（1-50kg/h）
TECHNICAL PARAMETER OF AIR SOURCE OZONE GENERATOR
|
產品型號 type |
臭氧產量 Ozone capacity |
原料氣流量 Feed gas flow |
臭氧濃度 Ozone concentration |
冷卻水流量 Cooling water flow |
功耗 Power consumption |
產品尺寸 dimension mm |
||
| kg/h | Nm3/h | wt% | m3/h | Kwh/kgO3 | 寬W | 深D | 高H | |
|
POZBA-1K |
1 | 26-39 | 2-3 | 3-4 | 14-17 | 1800 | 800 | 1800 |
|
POZBA-2K |
2 | 52-77 | 2-3 | 6-8 | 14-17 | 1800 | 1600 | 1800 |
|
POZBA-3K |
3 | 77-115 | 2-3 | 9-12 | 14-17 | 2400 | 1800 | 2000 |
|
POZBA-4K |
4 | 105-155 | 2-3 | 12-16 | 14-17 | 2800 | 2000 | 2100 |
|
POZBA-5K |
5 | 130-190 | 2-3 | 15-20 | 14-17 | 3000 | 2400 | 2100 |
|
POZBA-6K |
6 | 155-230 | 2-3 | 18-24 | 14-17 | 3000 | 2600 | 2100 |
|
POZBA-8K |
8 | 205-310 | 2-3 | 24-32 | 14-17 | 3600 | 2600 | 2100 |
|
POZBA-10K |
10 | 260-390 | 2-3 | 30-40 | 14-17 | 3600 | 2800 | 2200 |
|
POZBA-15K |
15 | 390-580 | 2-3 | 45-60 | 14-17 | 4500 | 3200 | 2600 |
|
POZBA-20K |
20 | 515-775 | 2-3 | 60-80 | 14-17 | 4500 | 3600 | 2600 |
|
POZBA-30K |
30 | 775-1160 | 2-3 | 100-120 | 14-17 | 6000 | 3800 | 2600 |
|
POZBA-40K |
40 | 1030-1550 | 2-3 | 120-160 | 14-17 | 6000 | 4000 | 2800 |
|
POZBA-50K |
50 | 1290-2320 | 2-3 | 150-200 | 14-17 | 7200 | 4800 | 2900 |
大型氧氣源技術參數（1-100kg/h）
Oxygen-Source Large Ozone Generator Technology Parameter
| 產品型號 |
臭氧產量 Ozone capacity |
原料氣流量 Feed gas flow |
臭氧濃度 Ozone concentration |
冷卻水流量 Cooling water flow |
功耗 Power consumption |
產品尺寸 dimension mm |
||
| kg/h | Nm3/h | wt% | m3/h | Kwh/kgO3 | 寬W | 深D | 高H | |
| POZBO-1K | 1 | 7-9 | 8-10 | 1.5-2 | 6-8 | 1400 | 800 | 1800 |
| POZBO-2K | 2 | 14-17 | 8-10 | 3-4 | 6-8 | 2000 | 800 | 1800 |
| POZBO-3K | 3 | 20-26 | 8-10 | 4.5-6 | 6-8 | 2000 | 1200 | 1800 |
| POZBO-4K | 4 | 28-39 | 8-10 | 6-8 | 6-8 | 2200 | 1600 | 1800 |
| POZBO-5K | 5 | 34-43 | 8-10 | 7.5-10 | 6-8 | 2800 | 1800 | 1900 |
| POZBO-6K | 6 | 41-52 | 8-10 | 9-12 | 6-8 | 2800 | 1800 | 1900 |
| POZBO-8K | 8 | 55-69 | 8-10 | 12-16 | 6-8 | 3000 | 2000 | 2100 |
| POZBO-10K | 10 | 68-86 | 8-10 | 15-20 | 6-8 | 3000 | 2400 | 2100 |
| POZBO-15K | 15 | 102-128 | 8-10 | 17.5-30 | 6-8 | 3400 | 2400 | 2100 |
| POZBO-20K | 20 | 136-171 | 8-10 | 30-40 | 6-8 | 3600 | 2800 | 2200 |
| POZBO-30K | 30 | 203-256 | 8-10 | 45-60 | 6-8 | 5200 | 3200 | 2600 |
| POZBO-40K | 40 | 271-341 | 8-10 | 60-80 | 6-8 | 5400 | 3400 | 2600 |
| POZBO-50K | 50 | 339-426 | 8-10 | 75-100 | 6-8 | 6000 | 3800 | 2800 |
| POZBO-60K | 60 | 406-511 | 8-10 | 80-120 | 6-8 | 6000 | 4200 | 2800 |
| POZBO-80K | 80 | 542-681 | 8-10 | 120-160 | 6-8 | 7200 | 4500 | 2800 |
| POZBO-100K | 100 | 677-852 | 8-10 | 150-200 | 6-8 | 7200 | 4800 | 3000 |
power consumption depends on different ozone concentration and cooling water temoerature.
